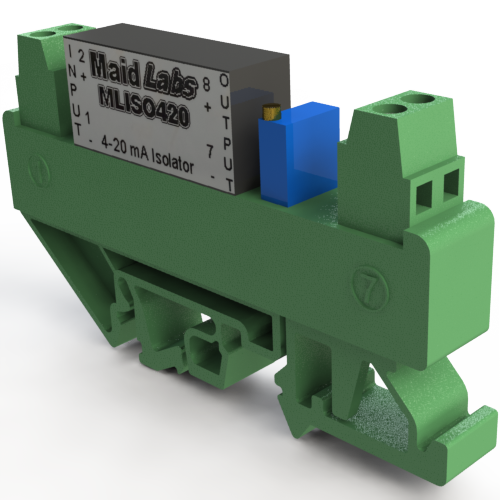

Loop powered 4-20 mA Isolator

Application

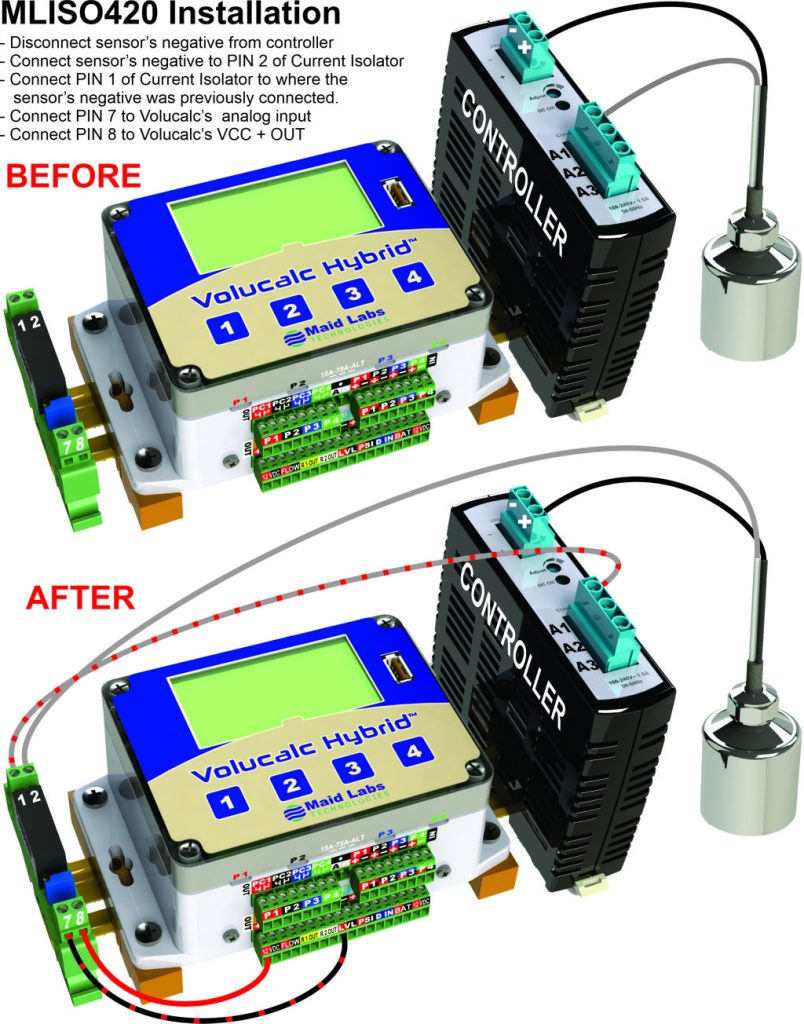

  • Designed to isolate a 4-20 mA signal from the instrument who reads its value, like the Volucalc RT.
  • DC current/voltage signal isolation and transmission.
  • Equipment and sensor signal acquisition.
  • 4-20 mA signal isolation and transfer.
  • Ground-loop elimination.

Description

  • Easy to use.
  • No distortion in long distance signal.
  • Dimensions: 3.2 in x 1.75 in x 0.5 in (82 mm x 45 mm x 12.5 mm)
  • Efficiency Grade: 0.1 / 0.2
  • High precision, error and non-linearity < 0.1%
  • 4-20 mA international standard current signal input and output
  • 3KV isolation between input and output.
  • Temperature Range:-25°C ~ +70°C
  • Standard DIN Rail35 package, super slim (12.5mm).
  • Multi-turn potentiometer to adjust signal output if needed.

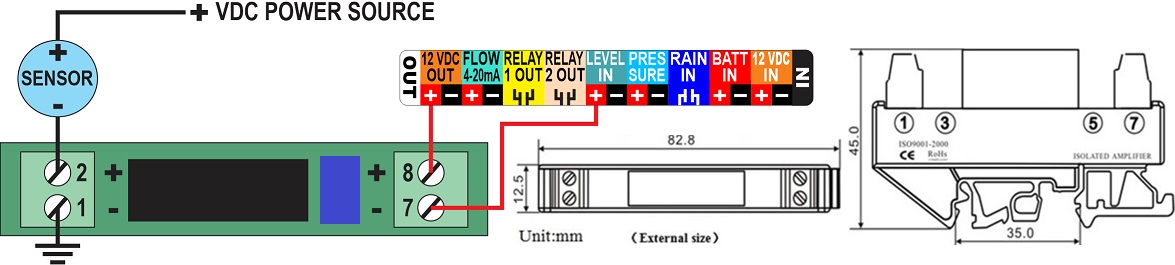

2-wire sensor

3-wire system
